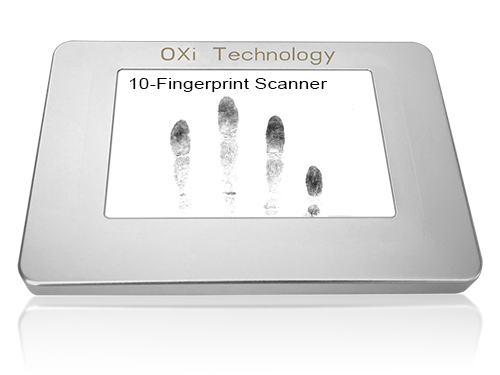

OXi 10-Fingerprint Scanner
OXi 10-Fingerprint Scanner is a super portable scanner with ONLY 12mm thickness.
Specifications
Capture Mode | Flat Fingerprints (4/2/1) |
Prints Image | 192px * 12 cm (1536*2400 Pixels) |
User Interface | On-device touch screen |
Image Resolution | 500 PPI |
Dimensions (W*L*H) | 185mm*122.7mm*12mm |
Scanner Interface | USB 2.0 |
Operating Temperature | 32℉~122℉(0℃~50℃) |
Operating System | Windows7/8 |
Certification | FBI Appendix F FAP60 (In preparation) |

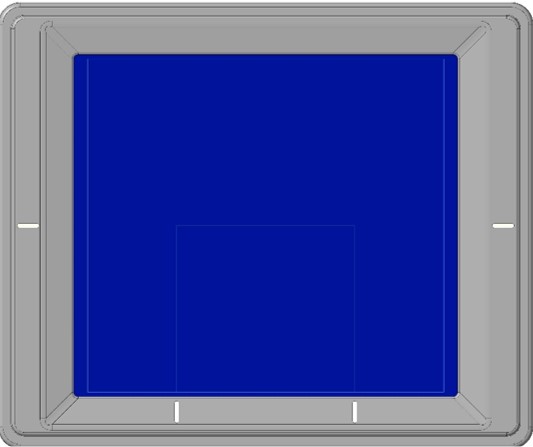

Ultra thin solution, support large area fingerprint(4-fingers) capture and identification field.
| Module dimension | 122mm*102mm*16.7mm |
| Resolution | 1600*1500(4-finger) 800*750（roll） |
| FPS | ≥3(4-finger) ≥10(roll) |
| Finger image area | 81.3mm*76.2m(4-finger) |
| PPI | 500 PPI |
| Interface | USB 2.0 (600mA@5V) |
| Operating temperature | -10℃～55℃ |
| Operating brightness | Up to 100,000 Lux |
| ESD | 15KV Air,8KV Contact |
| Dust and Water resistance | IP65 |
| Surface hardness | 9H |
| OS | Windows10~,Andriod9~12 |
| Certification | FBI Appendix F, Mobile ID FAP 60 |

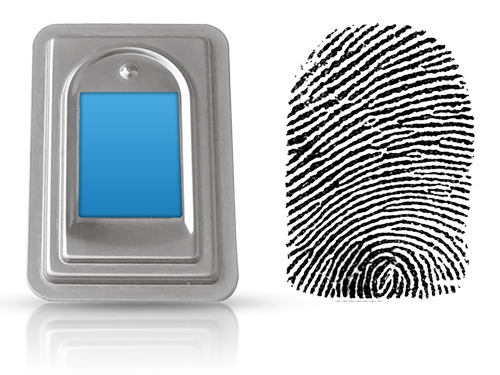

The OXi G2000 Sensor Modules are designed for applications that need FBI (FIPS 201) image quality out functionality.
G2000 Specifications
Capture Mode | Area Fingerprint |
Prints Image | 12.2 mm*14.4 mm (256 * 300 pixels) |
Image Resolution | 508 PPI |
Dimensions (W*L*H) | 27mm*41mm*3.6 mm |
Scanner Interface | USB 2.0,SPI |
Operating Temperature | -20℃~60℃ |
Operating System | Windows , Android |
Certification | GA,FBI PIV,STQC |
